PL-5700 Rain Defence Louvres

  • PL-5700
  • 3D VIEW

PL-5700

3D VIEW

Concealed behind an attractive perforated skin, Perform PL-5700 louvres offer excellent weather performance, combined with good airflow and sight screening.

null
null

INTAKE

null

EXHAUST

null
  • null
    Complex extruded blade design in vertical arrangement for maximum rain defence performance
  • null
    Multiple channels in blades to collect and drain water from the louvred area
  • null
    Perforated aluminium face conceals the louvre while offering modern appearance

    The screen can be supplied anodised or powder coated. Louvre modules are powder coated black as standard for maximum concealment.

  • null
    Sightproof design
View 3D Model
Download Data Sheet
View Test Data

KEY FEATURES

  • Blade Orientation: Vertical
  • Mullion Type: Hidden behind perforated screen
  • Louvre Depth: 191mm
  • Blade Pitch: 51mm
  • Weight: 32kg/m2 based on a 2m x 2m module size

Download data sheet for sectional details

Download Data Sheet

PERFORMANCE

SUMMARY
  • Rain Penetration Class: A up to 3.0m/s
  • Airflow Class: 3 (entry & discharge)
  • Airflow Coefficient Ce (entry): 0.252
  • Airflow Coefficient Cd (discharge): 0.222
  • K factor (entry / discharge): 15.747 / 20.291
null
null

INTAKE

null

EXHAUST

WIND DRIVEN RAIN PERFORMANCE (EN 13030:2001)
Core Ventilation Rate (m/s)0.00.51.01.52.02.53.03.5
Penetration Class (13m/s & 75mm/hr)AAAAAAAA
Effectiveness (%)10010010010010010099.897.1
AirflowCoefficient of Entry Ce0.252Class 3Coefficient of Discharge Cd0.222Class 3
RESISTANCE TO AIRFLOW

RESISTANCE TO AIRFLOW – ENTRY (Ce)2

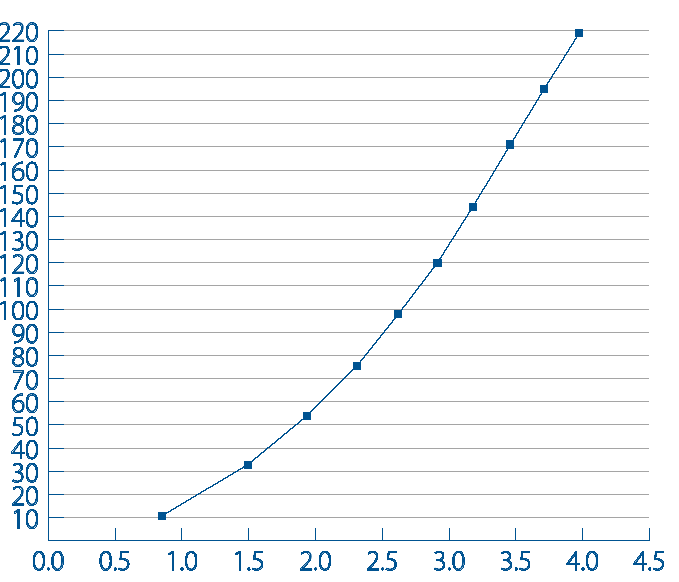

RESISTANCE TO AIRFLOW – DISCHARGE (Cd)2

Weather considerations:
Perform Louvres are not suitable for use in areas where perforations may become blocked or clogged with snow, ice, debris, or other occlusions. To maximise their performance, prevent property damage and provide a safe environment, they should be inspected and maintained regularly.

Note: Based on a 1m x 1m size. Smaller louvres may have a higher Pressure Drop.

MATERIALS & FINISHES

MATERIALS
  • Perforated sheet: 3mm thick aluminium alloy 1050 H14/H24 as standard.
  • Perforation pattern: 9.5mm Ø holes, with 12.7mm staggered centres and pitch.
  • Louvres: Aluminium alloy 6063-T6.
FINISH OPTIONS
  • Louvres: powder coated matt black as standard
  • Perforated sheet:
    • Mill finish aluminium
    • Clear or colour anodised
    • Polyester powder coated Matt (standard) or gloss

OPTIONAL EXTRAS

  • Glazing frame
  • Head / cill / jamb cover plates
  • Blanking panels (single skin or insulated)
  • Bird / vermin guards, insect mesh
  • Louvred doors
  • Dampers
View all accessories

PROJECTS

View All Louvre Projects

Specification

Guidance

The principal reason for using louvres is to allow the movement of air. But, louvre specification is a balance between form and function, with louvred façade appearance playing an important part in the selection process.

  • Performance Considerations
  • Design Considerations
  • Weather Louvre Testing
Learn more

Louvres

2016 Louvre Brochure

We have been manufacturing and selling louvres globally for over 60 years. When you specify our systems, you get the support of a dedicated team with a wealth of experience and design capability.

The performance of our louvres has been evaluated by independent third party testing. In addition, any of our standard or bespoke solutions can be verified in our own testing chamber to ensure they achieve specified performance levels in real world conditions.

Download the brochure for:

  • Industry Leading Products
  • Innovative New Design Options
  • Detailed Technical Information
  • Louvre Specification Guidance

+44 (0)1296 652810
Get In Touch
Order a Sample
Request an Estimate
Please complete the form below, or give us a call on +44 (0)1296 652800...

Get Technical Help
