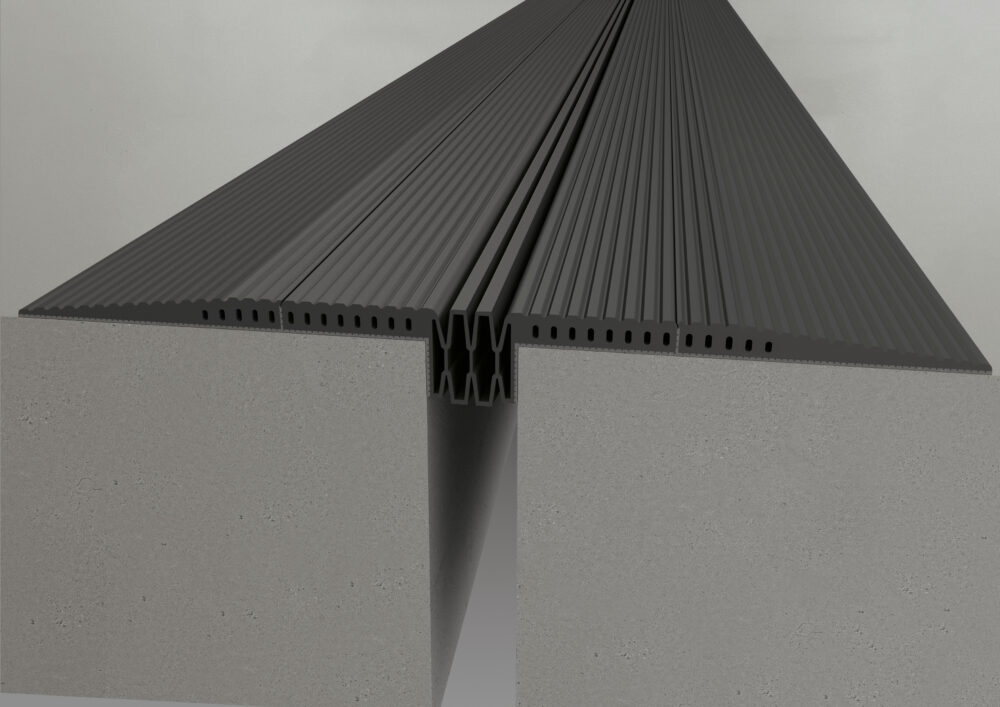

ZB-SM is a surface mounted version of our popular ZB Series Parking Joint Cover. With no need for a blockout, the ZB-SM offers a ramped wing seal to allow vehicles to easily pass over the joint.
Perfect for retrofitting to existing car parks where existing covers have failed or worn, ZB-SM is simple to install and requires very little maintenance.
Movement Details
FLOOR TO FLOOR SEALS:
To order any of the below models, please call +44 (0)1296 652800
| Model | Rapid Ship? | Joint Width (mm) | Exposed Surface (mm) | Seal Thickness (mm) | Horizontal Movement (mm) | Vertical Movement (mm) | Lateral Movement (mm) |
|---|---|---|---|---|---|---|---|
| ZB-100SM | NO | 25 | 341 | 19 | ±12 | ±10 | ±5 |
| ZB-200SM | NO | 50 | 366 | 19 | ±25 | ±10 | ±5 |
| ZB-300SM | NO | 75 | 391 | 19 | ±38 | ±12 | ±7 |
| ZB-400SM | NO | 100 | 416 | 19 | ±50 | ±15 | ±15 |
FLOOR TO WALL SEALS:
To order any of the below models, please call +44 (0)1296 652800
| Model | Rapid Ship? | Joint Width (mm) | Exposed Surface (mm) | Seal Thickness (mm) | Horizontal Movement (mm) | Vertical Movement (mm) | Lateral Movement (mm) |
|---|---|---|---|---|---|---|---|
| ZB-100SM | NO | 25 | 183 | 19 | ±12 | ±10 | ±5 |
| ZB-200SM | NO | 50 | 208 | 19 | ±25 | ±10 | ±5 |
| ZB-300SM | NO | 75 | 233 | 19 | ±38 | ±12 | ±7 |
| ZB-400SM | NO | 100 | 258 | 19 | ±50 | ±15 | ±15 |
Materials, Colours & Finishes
EPDM elastomeric seal available in Black. Floor to wall models include a mill finished, formed aluminium ledge angle.
Fixings
Floor: Installed using high-strength epoxy adhesive (supplied by CS)
Wall angle: Fixings (by others) to suit substrate at 450mm centres
Note: The standard sealant used with ZB-SM models is not compatible with bituminous finishes, such as asphalt. Please contact us for alternative solutions.
Note: To ensure successful installation of the system, the substrate temperature at the time of installation should be 5°C or above.
Stock Lengths
The seal can be supplied in a range of lengths to facilitate jointless installation, but handling needs to be taken into consideration due to product weight. Please contact us to discuss your requirements.
