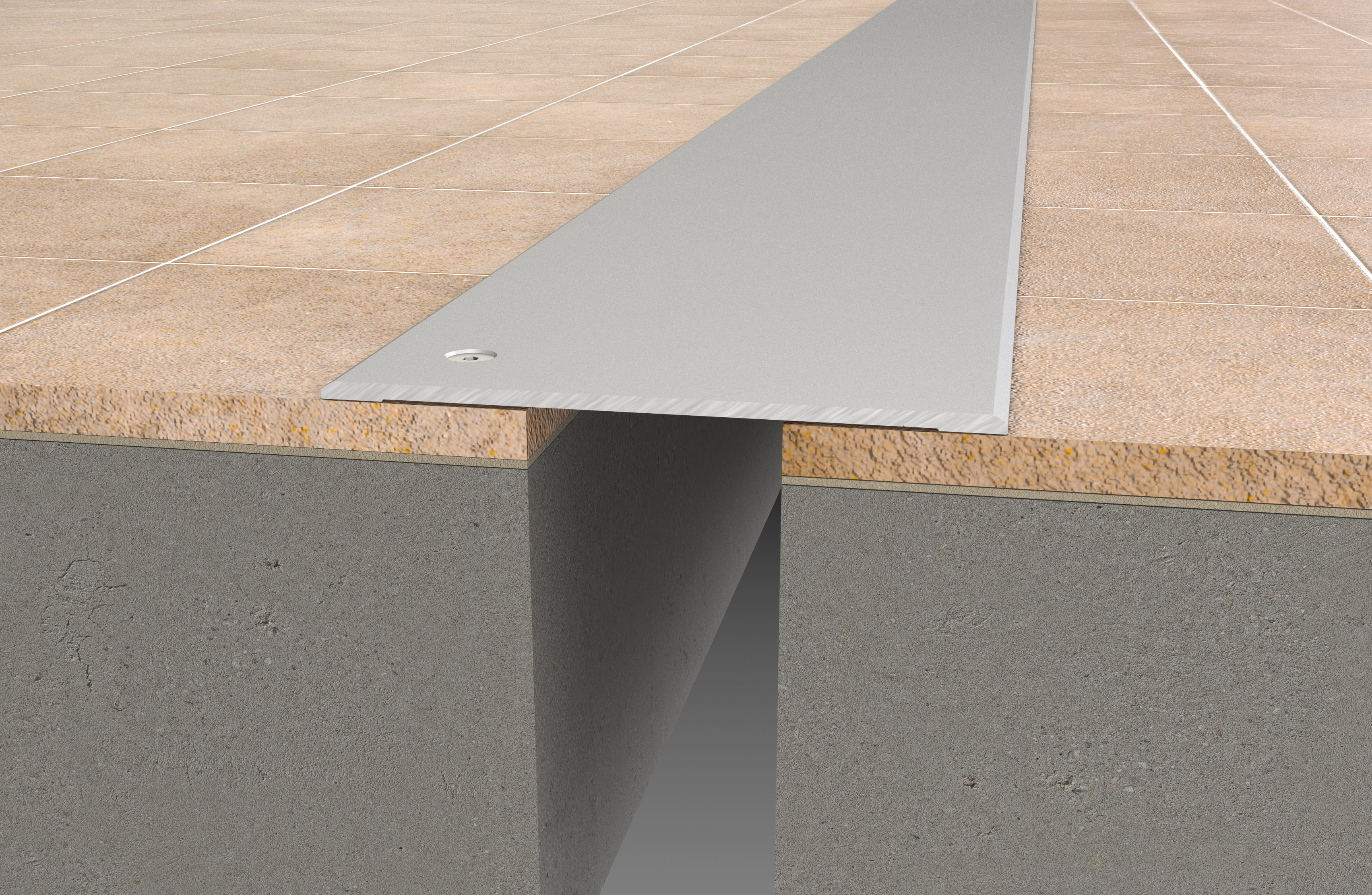

A simple, surface mounted aluminium cover plate that sits above the floor finish. Ramped edges help provide a smooth transition for wheeled traffic & minimise the risk of trip hazard.
Series Details
- Joint Width: up to 100mm
- Horizontal: up to +65/-100mm
- Vertical: up to ±2mm
- Lateral: ∞ (Infinite)
- Load Capability: 250kg point load
Movement Details
FLOOR TO FLOOR COVER PLATES:
To order any of the below models, please call +44 (0)1296 652800
| Model | Rapid Ship? | Joint Width (mm) | Exposed Surface (mm) | Horizontal Movement (mm) | Vertical Movement (mm) | Lateral Movement (mm) |
|---|---|---|---|---|---|---|
| PC-100 | Buy Now | 25 | 95 | ±25 | ±2 | ∞ |
| PC-200 | Buy Now | 50 | 133 | +40/-50 | ±2 | ∞ |
| PC-300 | NO | 75 | 171 | +50/-75 | ±2 | ∞ |
| PC-400 | NO | 100 | 210 | +65/-100 | ±2 | ∞ |
FLOOR TO WALL COVER PLATES:
To order any of the below models, please call +44 (0)1296 652800
| Model | Rapid Ship? | Joint Width (mm) | Exposed Surface (mm) | Horizontal Movement (mm) | Vertical Movement (mm) | Lateral Movement (mm) |
|---|---|---|---|---|---|---|
| PCW-100 | NO | 25 | 57 | ±25 | ±2 | ∞ |
| PCW-200 | NO | 50 | 95 | +40/-50 | ±2 | ∞ |
| PCW-300 | NO | 75 | 133 | +50/-75 | ±2 | ∞ |
| PCW-400 | NO | 100 | 171 | +65/-100 | ±2 | ∞ |
Note: Lateral movement is restricted by site conditions
Materials, Colours & Finishes
Cover plates are made of aluminium and supplied with a natural anodised finish as standard. Stainless steel options can be provided upon request.
Fixings
- Floor: fixings (by others) to suit substrate at 450mm centres and to achieve minimum 40mm embedment
- Wall: fixings (by others) to suit substrate at 450mm centres
NB: To ensure installation flexibility frames are not supplied pre-drilled
